Logic Analyzer - PulseView

By combining pico-jxgLABO and PulseView, you can observe the internal signals of the Pico board with a logic analyzer without any probe connections.

Of course, you can also use the Pico board exclusively as a logic analyzer to observe external signals, or observe both internal and external signals simultaneously. The method for using it as a dedicated logic analyzer is explained at the end of this article.

This article explains how to install and set up pico-jxgLABO and PulseView, and how to actually observe waveforms on the Pico board. The instructions assume a Windows host PC, but similar steps should work on Linux as well.

Installing PulseView and Connecting to pico-jxgLABO

Installation

PulseView is a tool for visualizing logic analyzer signals. It supports decoding various protocols such as I2C and SPI, making it easy to analyze signals captured with pico-jxgLABO.

You can download PulseView from the following site:

▶️ sigrok Downloads

Download and install either "PulseView (32bit)" or "PulseView (64bit)" from the Nightly builds section.

Connecting pico-jxgLABO and PulseView

Follow these steps to connect pico-jxgLABO and PulseView:

1. Connect the Pico board with pico-jxgLABO flashed to your PC using a USB cable.

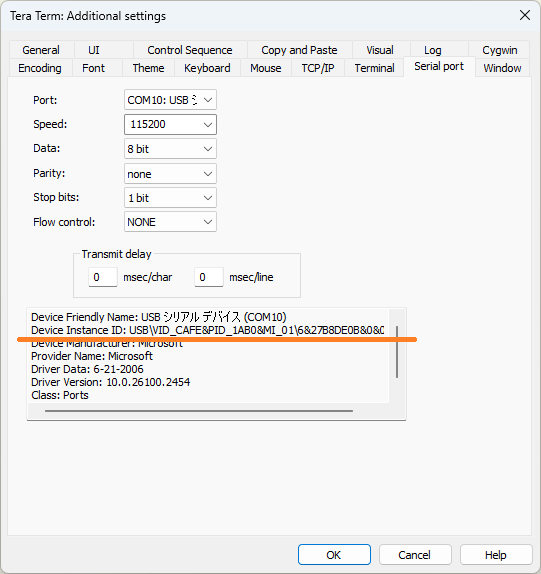

2. Start Tera Term for serial communication. From the menu bar, select [Setup (S)] - [Serial Port (E)...].

pico-jxgLABO provides two USB serial ports. On Windows, the Device Instance IDs are as follows:

• USB\VID_CAFE&PID_1AB0&MI01 ... for terminal use
• USB\VID_CAFE&PID_1AB0&MI03 ... for applications such as logic analyzer and plotter

Note the port number for the application port, as it will be used in step 6 for PulseView settings. Here, select the terminal port and click [New Open (N)] or [Reconfigure Current Connection (N)].

1. In Tera Term, run the pico-jxgLABO logic analyzer command la and specify the GPIO pins to measure. In the example below, GPIO2, GPIO3, and GPIO4 are selected:

L:/>la -p 2,3,4
disabled ---- 12.5MHz (samplers:1) pins:2-4 events:0/0 (heap-ratio:0.7)

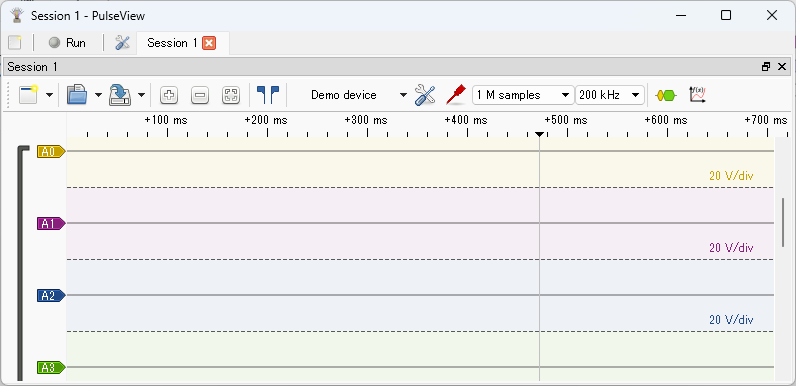

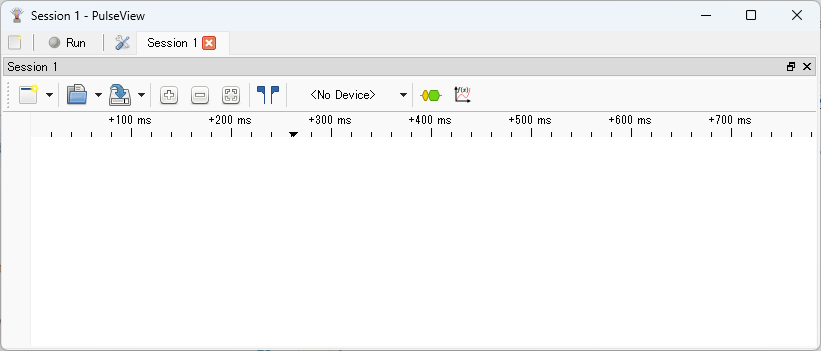

1. Start PulseView. One of the following main screens will appear:

Click the area labeled <No Device> or Demo device to open the "Connect to Device" dialog.

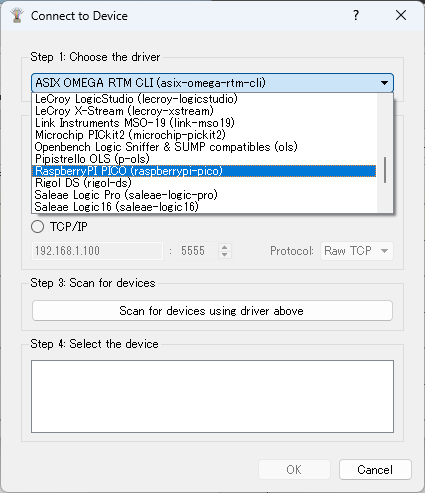

1. In Step 1: Choose the driver, select RaspberryPI PICO (raspberrypi-pico) from the dropdown list.

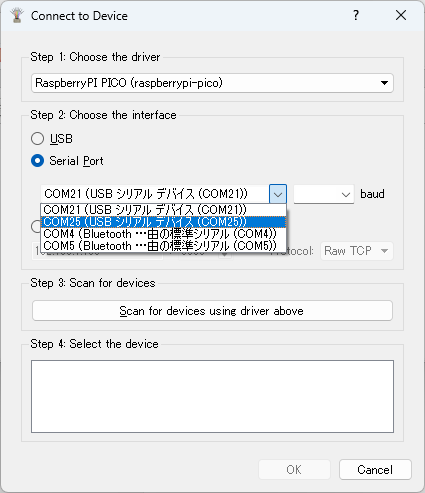

1. In Step 2: Choose the interface, select Serial Port and specify the application serial port noted in step 2. Leave the baud rate blank.

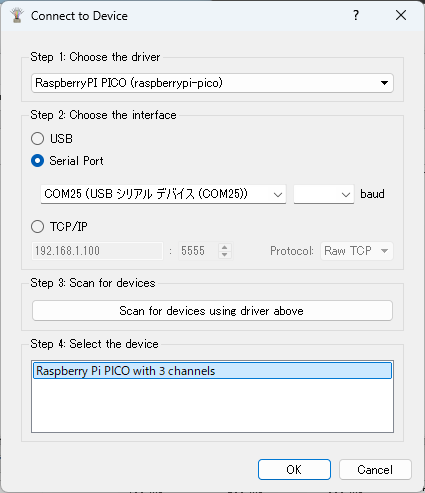

1. In Step 3: Scan for devices, click the Scan for devices using driver above button. In the list for Step 4: Select the device, confirm that RaspberryPi PICO with 3 channels appears and click OK.

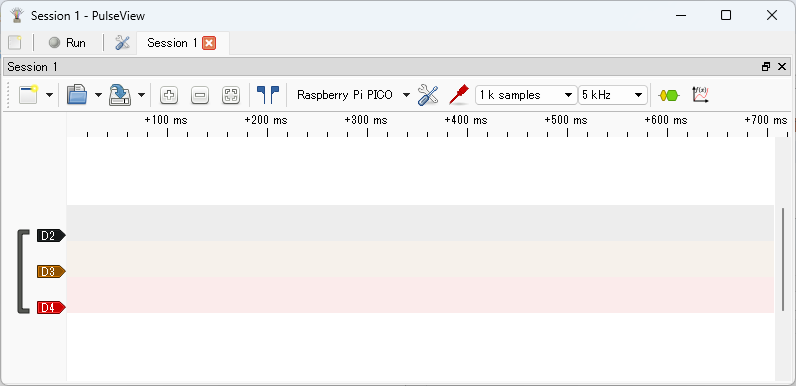

1. The main screen will look like this:

The signals for each GPIO specified with the -p option of the la command will be displayed as D2, D3, D4, etc.

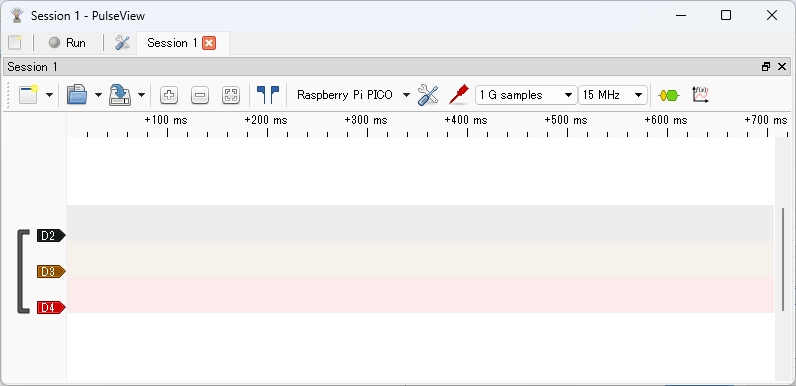

By default, the number of samples is set to 1k samples and the sampling rate to 5 kHz. Change these as follows:

• Number of samples: Set to the maximum 1 G samples
• Sampling rate: Set appropriately for the frequency of the signal to be observed. Here, set it to 15 MHz.

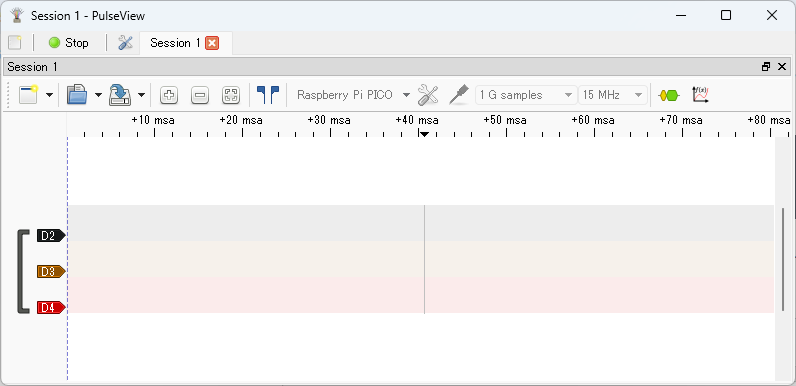

Now you can operate pico-jxgLABO on the Pico board from PulseView. Click the Run button at the top left to start capturing signals (the label changes to Stop).

Click the Stop button to stop capturing and display the observed waveform. If no signal is being generated, nothing will be displayed yet.

Now, let's generate various signals and observe their waveforms!

Observing Internal Signals on the Pico Board

Here, we use pico-jxgLABO commands to generate I2C, SPI, UART, and PWM signals on the Pico board itself and observe their waveforms. We also explain how to analyze these signals with protocol decoders.

Observing I2C Waveforms

After clicking the Run button in PulseView to start capturing, run the following command in your terminal software:

L:/>i2c1 -p 2,3 scan

This command assigns GPIO2 and GPIO3 to I2C1 SDA and SCL, and sends Read requests to I2C addresses 0x00 to 0x7f.

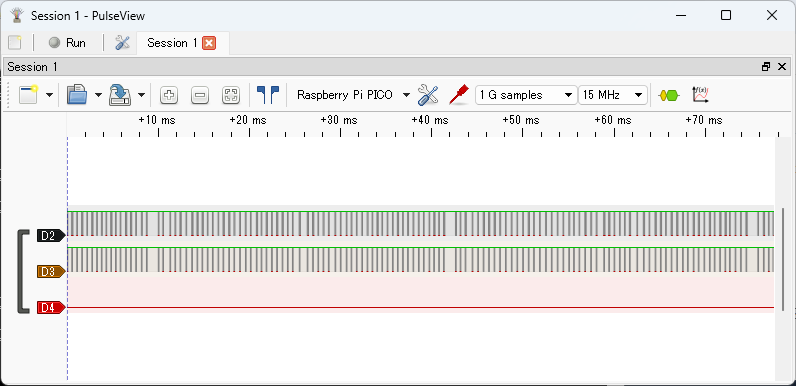

Click the Stop button in PulseView to stop capturing. The captured waveforms will be displayed as shown below. D2 is GPIO2 (I2C1 SDA), and D3 is GPIO3 (I2C1 SCL).

Basic mouse operations:

• Use the wheel to zoom in and out
• Drag within the waveform area with the left mouse button to move the display range

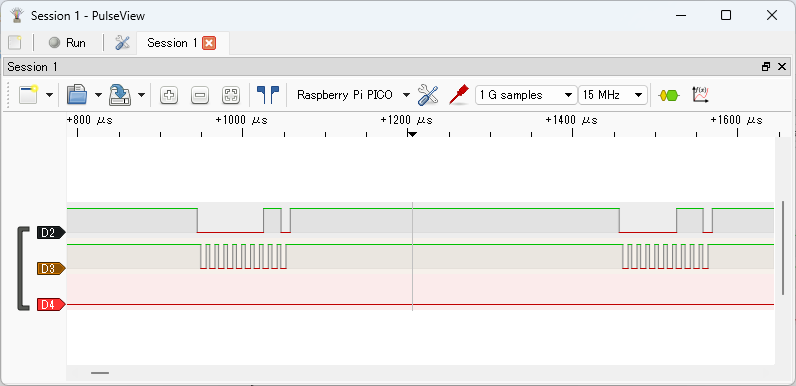

The image below shows a zoomed-in view of the beginning of the signal waveform.

Click the button indicated by the arrow below:

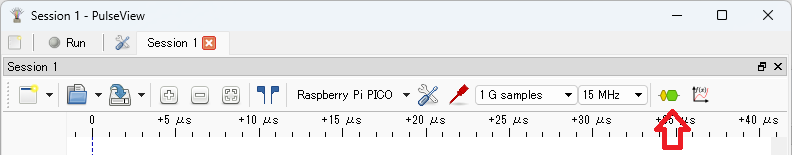

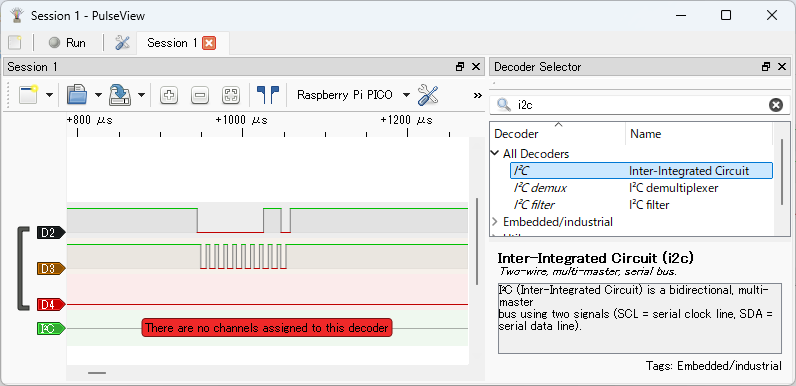

to display the Decoder Selector pane, where you can select protocol decoders. Enter i2c in the search box and double-click I2C in the list to add the I2C decoder to the waveform.

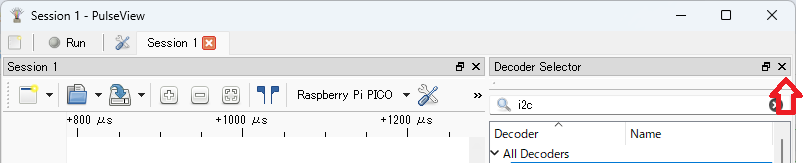

Click the button indicated by the arrow below:

to hide the Decoder Selector pane.

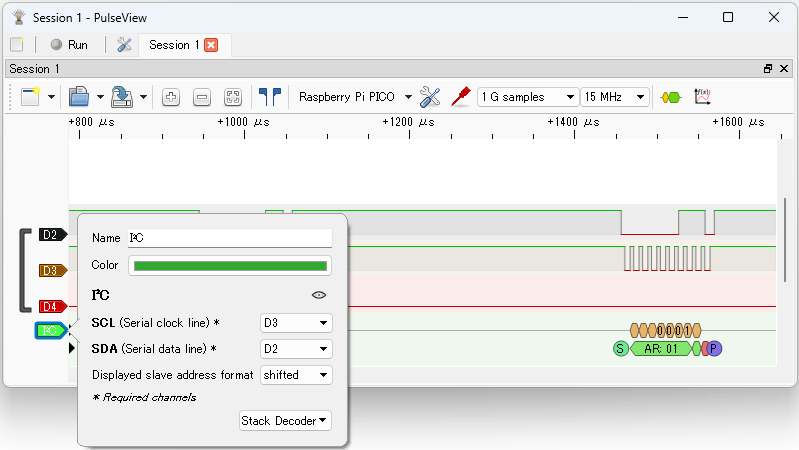

Left-click the I2C label in the signal name to open a dialog for setting protocol decoder parameters. Set SCL to D3 and SDA to D2.

Close the dialog to see the decoded I2C results.

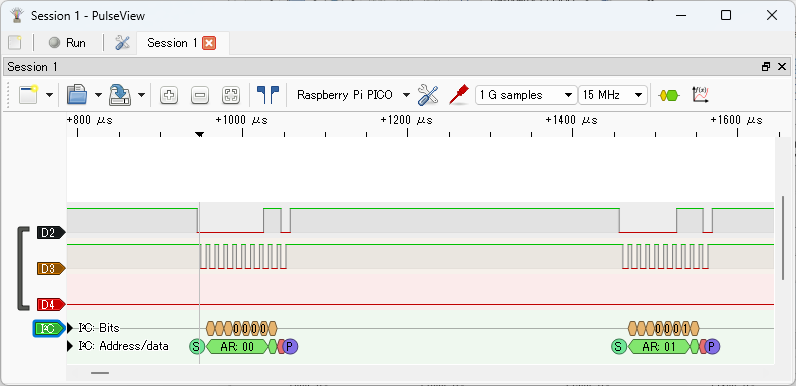

You can see that Read requests are sent to I2C addresses 0x00 to 0x7f. Since no I2C device is connected, NACK responses are returned.

Observing SPI Waveforms

After clicking the Run button in PulseView to start capturing, run the following command in your terminal software:

L:/>spi0 -p 2,3 write:0-255

This command assigns GPIO2 and GPIO3 to SPI0 MOSI and SCK, and sends data from 0 to 255.

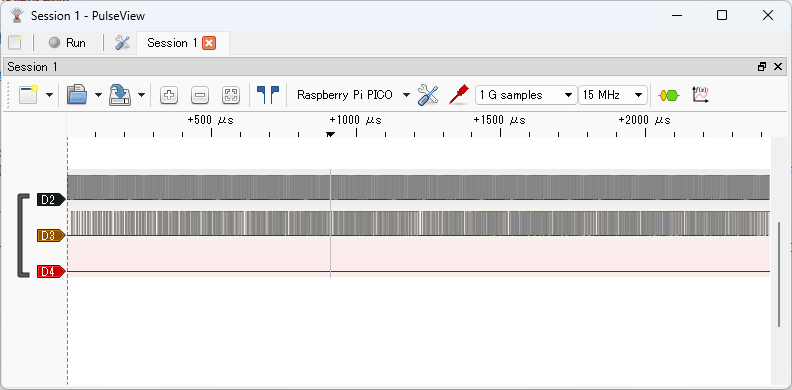

Click the Stop button in PulseView to stop capturing. The captured waveforms will be displayed as shown below. D2 is GPIO2 (SPI0 SCK), and D3 is GPIO3 (SPI0 MOSI).

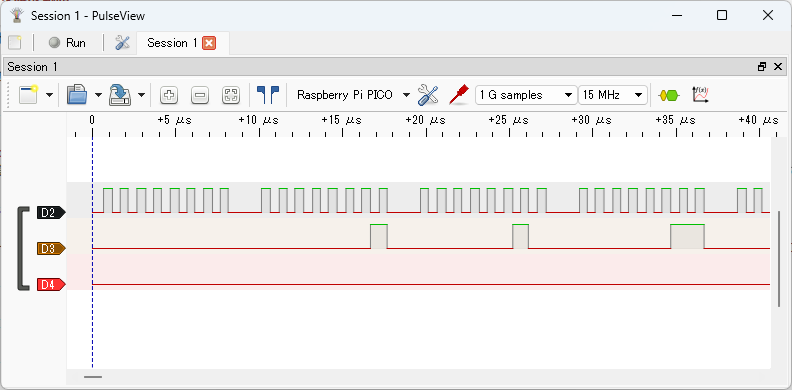

The image below shows a zoomed-in view of the beginning of the signal waveform.

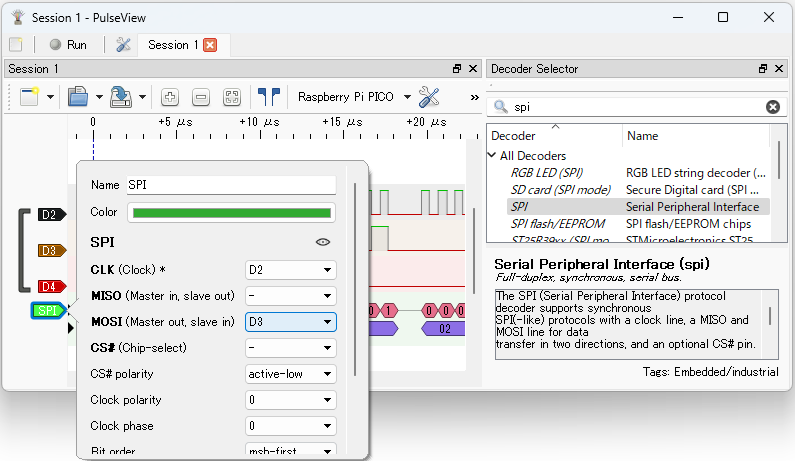

Display the Decoder Selector pane, enter spi in the search box, and double-click SPI in the list to add the SPI decoder to the waveform. Left-click the SPI label in the signal name to open the protocol decoder parameter dialog, and set CLK to D2 and MOSI to D3.

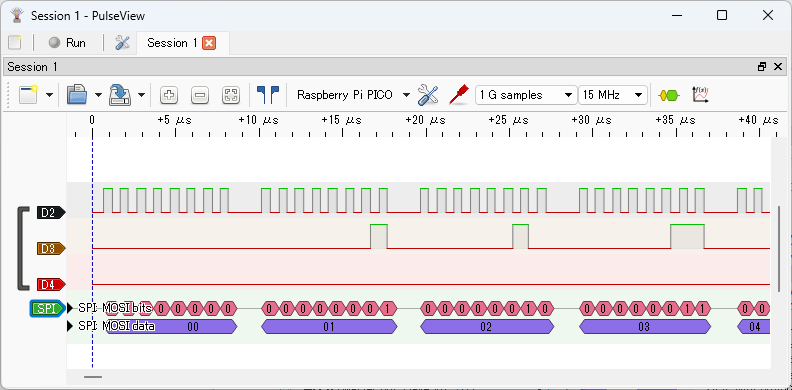

Close the dialog to see the decoded SPI results.

You can see that data from 0 to 255 is sent on SPI MOSI.

Observing UART Waveforms

After clicking the Run button in PulseView to start capturing, run the following command in your terminal software:

L:/>uart1 -p 4 write:0-255,0

This command assigns GPIO4 to UART1 TX and sends data from 0 to 255, followed by 0. The final 0 is sent because if the last data is 255, PulseView's UART protocol decoder may not recognize the stop bit correctly.

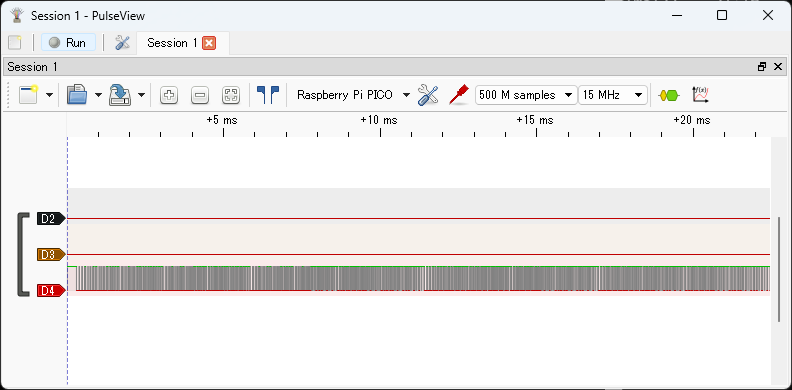

Click the Stop button in PulseView to stop capturing. The captured waveform will be displayed as shown below. D4 is GPIO4 (UART1 TX).

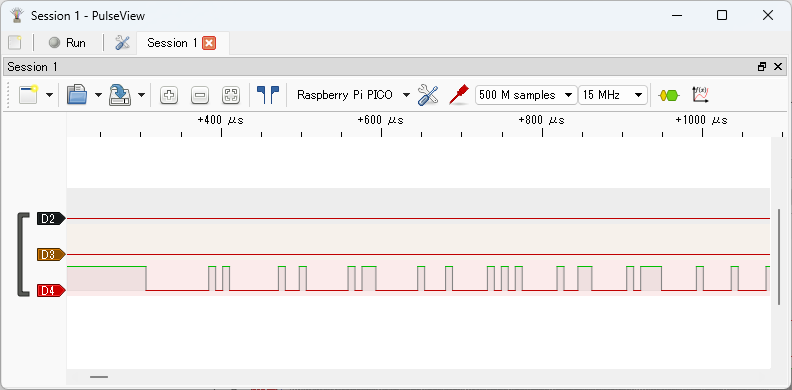

The image below shows a zoomed-in view of the beginning of the signal waveform.

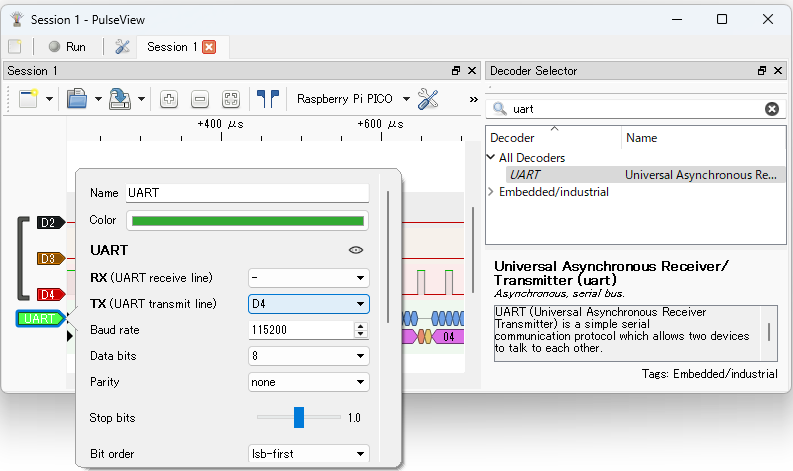

Display the Decoder Selector pane, enter uart in the search box, and double-click UART in the list to add the UART decoder to the waveform. Left-click the UART label in the signal name to open the protocol decoder parameter dialog, and set TX to D4.

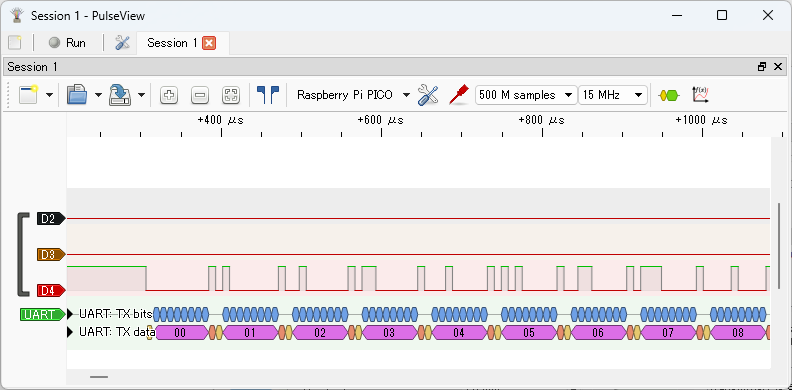

Close the dialog to see the decoded UART results.

You can see that data from 0 to 255 and 0 is sent on UART TX.

Observing PWM Waveforms

After clicking the Run button in PulseView to start capturing, run the following commands in your terminal software:

L:/>pwm 2,3,4 func:pwm freq:1000 counter:0
L:/>pwm2 duty:.2; pwm3 duty:.5; pwm4 duty:.8
L:/>pwm 2,3,4 enable

These commands set GPIO2, GPIO3, and GPIO4 to PWM function, set the frequency to 1kHz, set the duty cycles to 20%, 50%, and 80% respectively, and enable PWM.

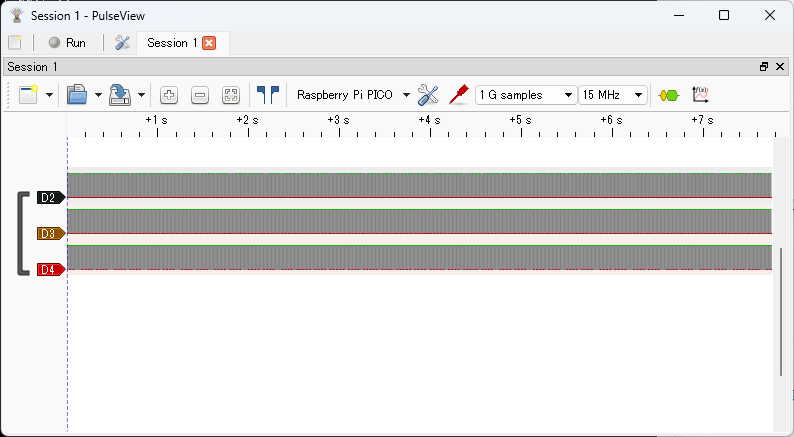

Click the Stop button in PulseView to stop capturing. The captured waveforms will be displayed as shown below.

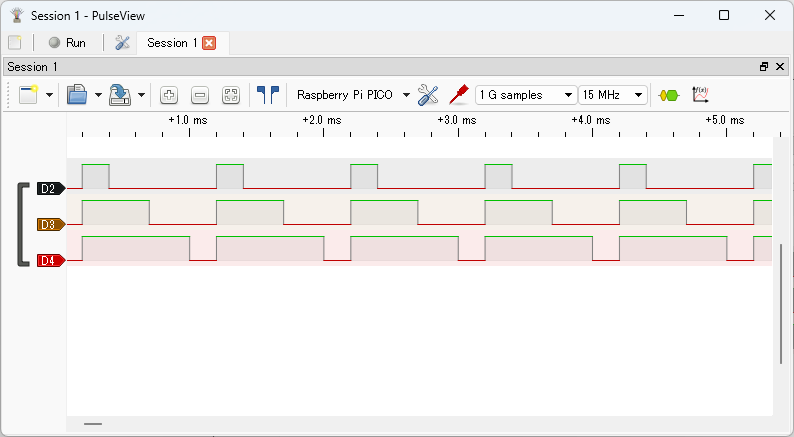

The image below shows a zoomed-in view of the beginning of the signal waveform.

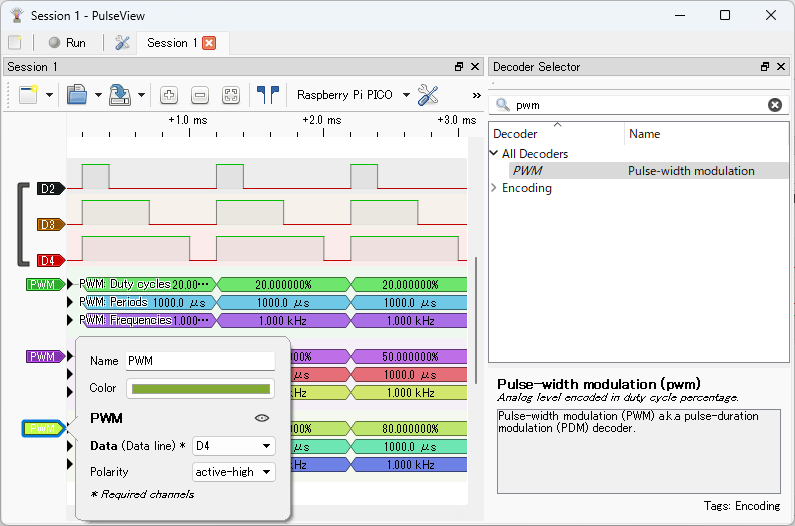

Display the Decoder Selector pane, enter pwm in the search box, and double-click PWM in the list to add PWM decoders to the waveform (add three in total). Left-click the PWM label in the signal name to open the protocol decoder parameter dialog, and set the Data field to D2, D3, and D4 for each decoder.

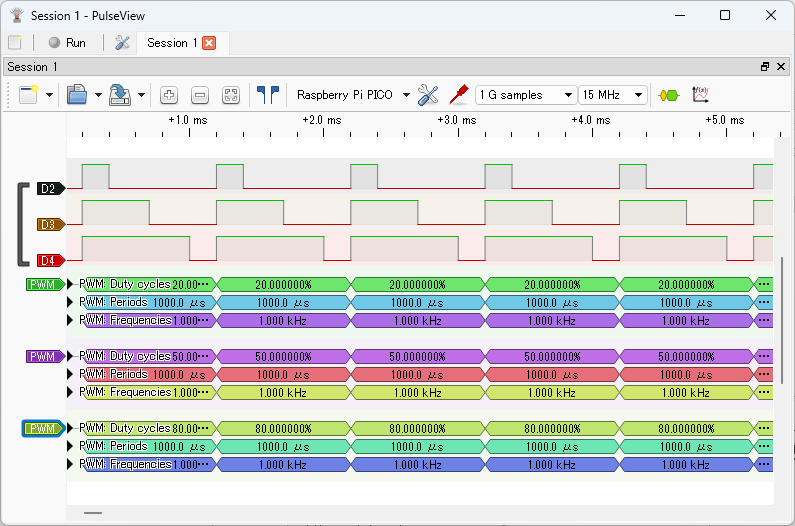

Close the dialog to see the decoded PWM results.

You can see PWM signals with duty cycles of 20%, 50%, and 80% at a frequency of 1.0kHz.

For more details on PWM operation with pico-jxgLABO, see the following article:

▶️ Mastering PWM on Pico with the pwm command

la Command Options

la is the logic analyzer command for pico-jxgLABO. By changing the options for the la command, you can specify which GPIO pins to measure, the measurement target (internal/external signals), sampling rate, and more.

Here are the main options that affect integration with PulseView.

Specifying GPIO Pins to Measure

Use the -p option of the la command to specify which GPIO pins to measure. You can specify a single GPIO pin or a range. Examples:

Command	Description
la -p 0	Measure GPIO0
la -p 2,3,8,9	Measure GPIO2, 3, 8, 9
la -p 2-15	Measure GPIO2 to GPIO15
la -p 2-5,8-10,15	Measure GPIO2 to 5, GPIO8 to 10, and GPIO15

In PulseView, the labels will always be D2, D3, D4, etc., regardless of the GPIO pin numbers set here. You can left-click the label to change the display name for clarity.

Specifying the Measurement Target

Use the --target option to specify whether to measure internal signals (inside the Pico board) or external signals (input to the Pico board's GPIO pins). If not specified, internal signals are measured by default.

Command	Description
la --target:external	Measure external signals
la --target:internal	Measure internal signals

The --target option sets the measurement target for all GPIO pins, but you can use the --internal or --external options to specify some GPIO pins as internal or external signals. Examples:

Command	Description
la --target:external --internal:2,3,4	GPIO2, 3, 4 as internal, others as external
la --target:internal --external:2,3,4	GPIO2, 3, 4 as external, others as internal

Sampling Rate

pico-jxgLABO uses units called samplers to sample signals, and up to 4 can operate simultaneously. One sampler operates at up to 12.5MHz (Pico2) or 10.4MHz (Pico), and the total sampling rate is this rate multiplied by the number of samplers. Specify the number of samplers with the --samplers option. Examples:

Command	Sampling Rate
la --samplers:1	12.5MHz (Pico2), 10.4MHz (Pico)
la --samplers:2	25.0MHz (Pico2), 20.8MHz (Pico)
la --samplers:3	37.5MHz (Pico2), 31.2MHz (Pico)
la --samplers:4	50.0MHz (Pico2), 41.7MHz (Pico)

Increasing the number of samplers increases the sampling rate but decreases the number of events that can be sampled.

Using the Pico Board as a Dedicated Logic Analyzer

You can use the Pico board as a dedicated logic analyzer to observe external signals. For example, running the following la command allows you to use a total of 24 GPIO pins (GPIO2 to GPIO22 and GPIO26 to GPIO28) as measurement pins for the logic analyzer:

L:/>la -p 2-22,26-28 --target:external

If you create a file named autoexec.sh with the following content in the root directory of the L: drive, the Pico board will automatically configure the logic analyzer GPIO pins when powered on. This eliminates the need to operate commands from the terminal software.

text:autoexec.sh la -p 2-22,26-28 --target:external
