GPIO Control

This article introduces how to control GPIO using the gpio command in pico-jxgLABO.

Although GPIO is often thought of as just a simple on/off input/output function, experimenting with various command operations can deepen your understanding of GPIO control. Try changing settings such as maximum current and hysteresis characteristics to explore the possibilities of the Pico.

Controlling GPIO with the gpio Command

Let's experiment with GPIO using the gpio command. Here, Pico 2 is used, but you can do the same with the original Pico.

Displaying Current GPIO Status

Running gpio with no arguments displays the current status of all GPIOs.

L:/>gpio
GPIO0  lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO1  lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO2  lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO3  lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO4  lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO5  lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO6  lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO7  lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO8  lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO9  lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO10 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO11 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO12 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO13 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO14 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO15 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO16 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO17 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO18 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO19 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO20 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO21 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO22 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO23*lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO24*lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO25*lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO26 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO27 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO28 lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO29*lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on

The Pico has 30 GPIOs, numbered 0 to 29. The fields in the status display mean:

  • The second field, lo or hi, shows the logic value of each pin (lo = Low/0, hi = High/1)
  • func shows the function assigned to the GPIO. ------ means no function (null function)
  • dir is the direction: in for input, out for output
  • pull is the pull-up/pull-down resistor setting: down = pull-down, up = pull-up, none = high impedance, both = both enabled
  • drive is the drive strength, usually 4mA
  • slew is slew rate control, usually slow
  • hyst is input hysteresis: on = enabled, off = disabled

GPIOs marked with * (GPIO23, GPIO24, GPIO25, GPIO29) are not connected to external pins and are assigned to special functions:

Pico and Pico 2: - GPIO23 - OP Controls the on-board SMPS Power Save pin - GPIO24 - IP VBUS sense - high if VBUS is present, else low - GPIO25 - OP Connected to user LED - GPIO29 - IP Used in ADC mode (ADC3) to measure VSYS/3

Pico W and Pico 2 W: - GPIO23 - OP wireless power on signal - GPIO24 - OP/IP wireless SPI data/IRQ - GPIO25 - OP wireless SPI CS - when high also enables GPIO29 ADC pin to read VSYS - GPIO29 - OP/IP wireless SPI CLK/ADC mode (ADC3) to measure VSYS/3

These pins cannot be controlled by the gpio command to avoid affecting board operation. However, GPIO25 (user LED) can be controlled with the -B or --builtin-led option for convenience.

Specifying GPIO Pin Numbers

The first argument to the gpio command specifies the GPIO pin number(s). You can specify a single pin or a range. Examples:

Command Description
gpio 0 Show status of GPIO0
gpio 2,3,8,9 Show status of GPIO2, 3, 8, 9
gpio 2-15 Show status of GPIO2 to GPIO15
gpio 8- Show status of GPIO8 to GPIO29

There are also shortcut commands like gpio0 to gpio29 (e.g., gpio2 is the same as gpio 2).

Digital Input and Output

Digital Output

Set a GPIO to output mode and output a digital signal. For example, to turn on the built-in LED (GPIO25) with a high signal:

L:/>gpio 25 -B func:sio dir:out put:1

The func subcommand sets the function to sio (Single-cycle IO). SIO is a special block that the CPU can access in one cycle, and some of its registers are assigned to GPIO I/O. The dir subcommand sets output mode, and put sets the output value.

The gpio command also has repeat and sleep subcommands for repeating actions and adding delays. For example, to blink the LED:

L:/>gpio 25 -B func:sio dir:out repeat:20 {put:1 sleep:100 put:0 sleep:100}

You can also use the toggle subcommand to invert the output value and blink the LED more simply:

L:/>gpio 25 -B func:sio dir:out repeat:20 {toggle sleep:100}

You can observe GPIO signals with a logic analyzer:

L:/>la enable -p 25
L:/>gpio 25 -B func:sio dir:out repeat:20 {toggle sleep:100}
L:/>la print
 Time [usec] P25
             │
             :
        0.00 └─┐
               :
    99208.00 ┌─┘
             :
   199199.52 └─┐
               :
   299194.56 ┌─┘
             :

Start capture with la enable, operate the GPIO, then display the captured data with la print.

If you set the function to something other than SIO, the output value set by put is ignored. For example, assigning UART RX to GPIO1 and setting output high:

L:/>gpio 1 func:uart dir:out put:1
GPIO1  lo~ func:UART0 RX   dir:out pull:down drive:4mA slew:slow hyst:on

The pin state is lo~, indicating the set value is ignored. The ~ means the set value and actual signal differ.

Even with SIO, if the direction is input, the set value is ignored:

L:/>gpio 1 func:sio dir:in put:1
GPIO1  hi  func:SIO        dir:in  pull:down drive:4mA slew:slow hyst:on

It may look like the set value is reflected, but this is due to the pin state being high for another reason (e.g., a hardware bug in Pico 2). Setting the value to 0 shows it is ignored:

L:/>gpio 1 func:sio dir:in put:0
GPIO1  hi~ func:SIO        dir:in  pull:down drive:4mA slew:slow hyst:on

Conclusion: To output digital signals from the CPU, set the function to SIO and the direction to output. Otherwise, the output value does not affect the pin state, so there are no side effects.

Digital Input

Set a GPIO to input mode and read digital signals. For example, to set GPIO1 to input and read its level (try connecting it to GND with a jumper wire):

L:/>gpio 1 func:sio dir:in pull:up repeat {get sleep:300}

The dir subcommand sets input mode. The pull subcommand enables the pull-up resistor to fix the signal high when unconnected. get reads the GPIO signal level.

On the Pico, you can read the digital signal level from the CPU even if the function is not SIO. For example, you can monitor UART RX on GPIO1:

L:/>gpio 1 func:uart dir:in repeat {get sleep:300}

About Function Settings

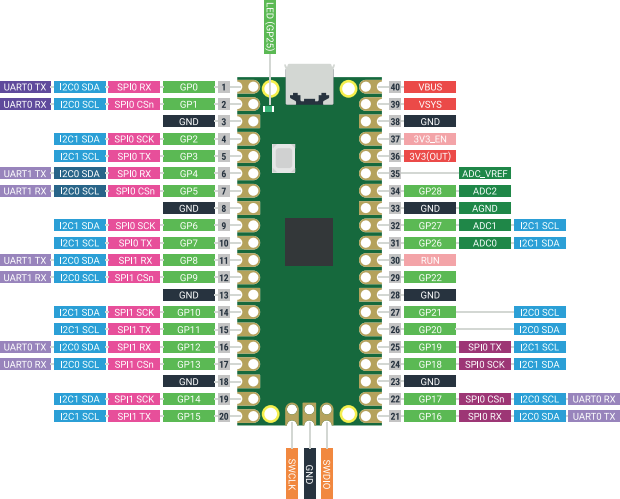

The familiar pinout diagram for Pico GPIO function settings:


See the datasheets for more details:

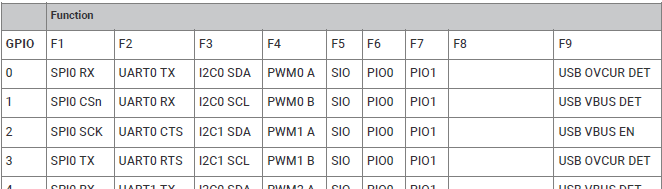

Pico - RP2040 Datasheet 2.19.2 Function select

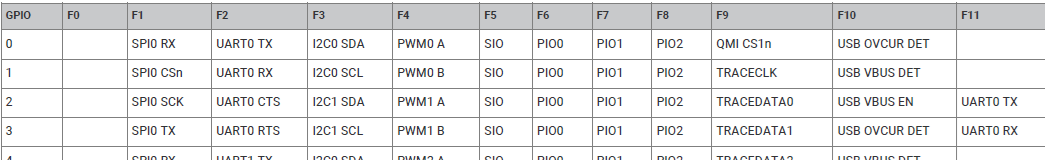

Pico 2 - RP2350 Datasheet 9.4. Function select


Each function is assigned a number from F0 to F31, with F31 being the null function (no assignment).

The gpio command in pico-jxgLABO uses the func subcommand to set the function. Available function names:

Pico - spi, uart, i2c, pwm, sio, pio0, pio1, clock, usb, xip, null Pico 2 - spi, uart, uart-aux, i2c, pwm, sio, pio0, pio1, pio2, clock, usb, hstx, xip-cs1, coresight-trace, null

For example, to set all available GPIOs to PWM function:

L:/>gpio 0- func:pwm
GPIO0  lo  func:PWM0 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO1  lo  func:PWM0 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO2  lo  func:PWM1 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO3  lo  func:PWM1 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO4  lo  func:PWM2 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO5  lo  func:PWM2 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO6  lo  func:PWM3 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO7  lo  func:PWM3 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO8  lo  func:PWM4 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO9  lo  func:PWM4 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO10 lo  func:PWM5 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO11 lo  func:PWM5 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO12 lo  func:PWM6 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO13 lo  func:PWM6 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO14 lo  func:PWM7 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO15 lo  func:PWM7 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO16 lo  func:PWM0 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO17 lo  func:PWM0 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO18 lo  func:PWM1 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO19 lo  func:PWM1 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO20 lo  func:PWM2 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO21 lo  func:PWM2 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO22 lo  func:PWM3 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO23*lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO24*lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO25*lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO26 lo  func:PWM5 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO27 lo  func:PWM5 B     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO28 lo  func:PWM6 A     dir:in  pull:down drive:4mA slew:slow hyst:on
GPIO29*lo  func:------     dir:in  pull:down drive:4mA slew:slow hyst:on

Reviewing all available assignments occasionally may help you find more convenient settings.

Pull-up and Pull-down

You can set pull-up or pull-down resistors to prevent GPIO pins from floating. This clarifies the signal level when the pin is unconnected.

Use pull:up to enable pull-up, pull:down for pull-down, and pull:none for high impedance.

The pull-up/pull-down resistance on the Pico is about 25kΩ. For I2C, the recommended pull-up is 1kΩ to 10kΩ, so the internal value is quite high. For reliable I2C, use external resistors.

Info

Pico 2 has a bug where pull-down does not work correctly (see here).

For example, running this on Pico 2:

L:/>gpio 1 func:sio dir:in pull:down repeat {get sleep:300}

The pin should always be low when unconnected, but it is unstable. Use an external resistor for reliable pull-down on Pico 2 (chip marking "P2350A0A2"). The fixed version ("P2350A0A4") works correctly.

Drive Strength

Drive strength controls the output current. The default is 4mA, but you can set 2mA, 4mA, 8mA, or 12mA with the drive subcommand.

To measure output current, connect an ammeter (be careful!) and run:

L:/>gpio 1 func:sio dir:out pull:none drive:2mA put:1
L:/>gpio 1 func:sio dir:out pull:none drive:4mA put:1
L:/>gpio 1 func:sio dir:out pull:none drive:8mA put:1
L:/>gpio 1 func:sio dir:out pull:none drive:12mA put:1

To measure sink current:

L:/>gpio 1 func:sio dir:out pull:none drive:2mA put:0
L:/>gpio 1 func:sio dir:out pull:none drive:4mA put:0
L:/>gpio 1 func:sio dir:out pull:none drive:8mA put:0
L:/>gpio 1 func:sio dir:out pull:none drive:12mA put:0

Results for Pico and Pico 2:

Output current:

drive setting Pico Pico 2
2mA 20.2mA 20.3mA
4mA 30.0mA 30.0mA
8mA 48.0mA 48.7mA
12mA 56.5mA 57.1mA

Sink current:

drive setting Pico Pico 2
2mA 25.6mA 27.6mA
4mA 37.5mA 40.6mA
8mA 61.2mA 67.1mA
12mA 72.2mA 79.0mA

The set drive strength is only a rough guide; actual current depends on load and circuit characteristics. Higher settings allow more current, which may help with high-load devices.

Slew Rate

Slew rate controls the rise/fall speed of signals. The default is slow, but you can set slow or fast with the slew subcommand. In practice, changing this may not be noticeable.

Hysteresis

Hysteresis helps filter slow or noisy signals. The default is on, but you can set it to off with the hyst subcommand. Disabling hysteresis may make the input unstable for slowly changing signals.

Experiment circuit:


The time constant is \(CR=1000 \cdot 100 \cdot 10^{-6}\) = 100ms. Generate a 1000ms high pulse on GPIO0 and observe with GPIO2 and GPIO3.

First, enable hysteresis on both pins and run (use pio1 for Pico):

L:/>gpio 2,3 func:pio2 pull::none
L:/>gpio 2 hyst:on
L:/>gpio 3 hyst:on
L:/>la enable --samplers:4 -p 0,*,2,3
L:/>gpio 0 func:sio dir:out put:0 sleep:1000 put:1 sleep:1000 put:0
L:/>la print --reso:300000

Result:

 Time [usec] P0      P2  P3
             │       │   │
        0.00 └─┐     │   │
   134383.46   │     └─┐ │
   134556.04   │       │ └─┐
               │       │   │
               │       │   │
   999803.38 ┌─┘       │   │
  1279721.92 │         │ ┌─┘
  1282086.20 │       ┌─┘ │
 Time [usec] P0      P2  P3

Next, disable hysteresis on GPIO3:

L:/>gpio 2,3 func:pio2 pull::none
L:/>gpio 2 hyst:on
L:/>gpio 3 hyst:off
L:/>la enable --samplers:4 -p 0,*,2,3
L:/>gpio 0 func:sio dir:out put:0 sleep:1000 put:1 sleep:1000 put:0
L:/>la print --reso:300000

Result:

 Time [usec] P0      P2  P3
             │       │   │
        0.00 └─┐     │   │
   124398.68   │     │   └─┐
   133327.28   │     └─┐   │
               │       │   │
               │       │   │
  1000026.48 ┌─┘       │   │
  1224540.98 │         │ ┌─┘
  1275310.10 │       ┌─┘ │
 Time [usec] P0      P2  P3

Relation to C/C++ API

The corresponding Pico SDK APIs for each gpio subcommand:

Subcommand Pico SDK API
func gpio_set_function(uint gpio, gpio_function_t fn)
dir gpio_set_dir(uint gpio, bool out)
put gpio_put(uint gpio, bool value)
get bool gpio_get(uint gpio)
pull gpio_set_pulls(uint gpio, bool up, bool down)
drive gpio_set_drive_strength(uint gpio, enum gpio_drive_strength drive)
slew gpio_set_slew_rate(uint gpio, enum gpio_slew_rate slew)
hyst gpio_set_input_hysteresis_enabled(uint gpio, bool enabled)

The corresponding pico-jxglib APIs:

Subcommand pico-jxglib API
func GPIO::set_function(gpio_function_t fn)
dir GPIO::set_dir(bool out)
put GPIO::put(bool value)
get bool GPIO::get()
pull GPIO::set_pulls(bool up, bool down)
drive GPIO::set_drive_strength(enum gpio_drive_strength drive)
slew GPIO::set_slew_rate(enum gpio_slew_rate slew)
hyst GPIO::set_input_hysteresis_enabled(bool enabled)
